Developed in conjunction with the engineers at KW Automotive, the team at HPA Motorsports has designed an out of the box solution that is preset to perform...
HPA’s SHS coilovers offer an unmatched balance between handling and comfort. All SHS applications are based off KW's twin tube low pressure damper design. Embracing KW’s patented valve technology, the high-speed dampening characteristics remain similar to OEM offering a near factory comfort level, while the low speed dampening power is increased to eliminate pitch and roll associated with heavy braking or corner entry. Each application features linear race springs on the front and progressive barrel spring on the rear.
SHS is the PERFECT suspension solution for the enthusiast looking to gain better control at corner entry on high-speed sprints, yet uses their car in the harsh real world environment.
Key Features
- The stainless steel construction guarantees the height adjustability won’t be lost through commuting on salt covered winter roads. KW –INOX technology
- Self centering integrated dust boots. Keep the winter sand and debris from damaging the Piston Rod seal for long life
- Stainless steel impregnated composite spring seats offer easy ride height adjustment all season long. No binding conventionally found with aluminium seats

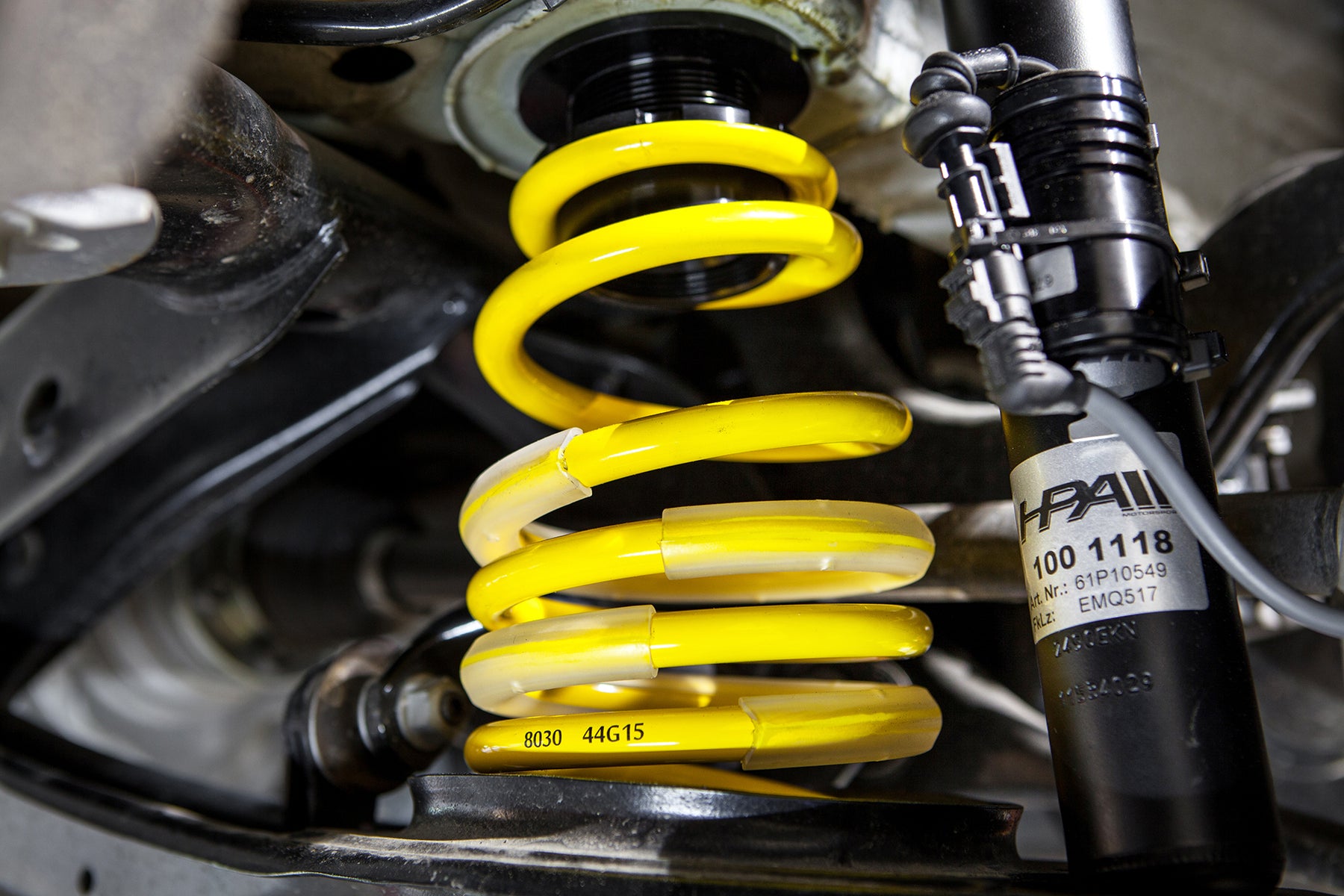

- Race Springs are EPS powder coated and Zinc phosphated for long life
- Springs are made from chrome-silicon steel
- 54SiCR6 offering higher carry capacity with less material than standard steel wound springs
- Height adjustable on all 4 corners

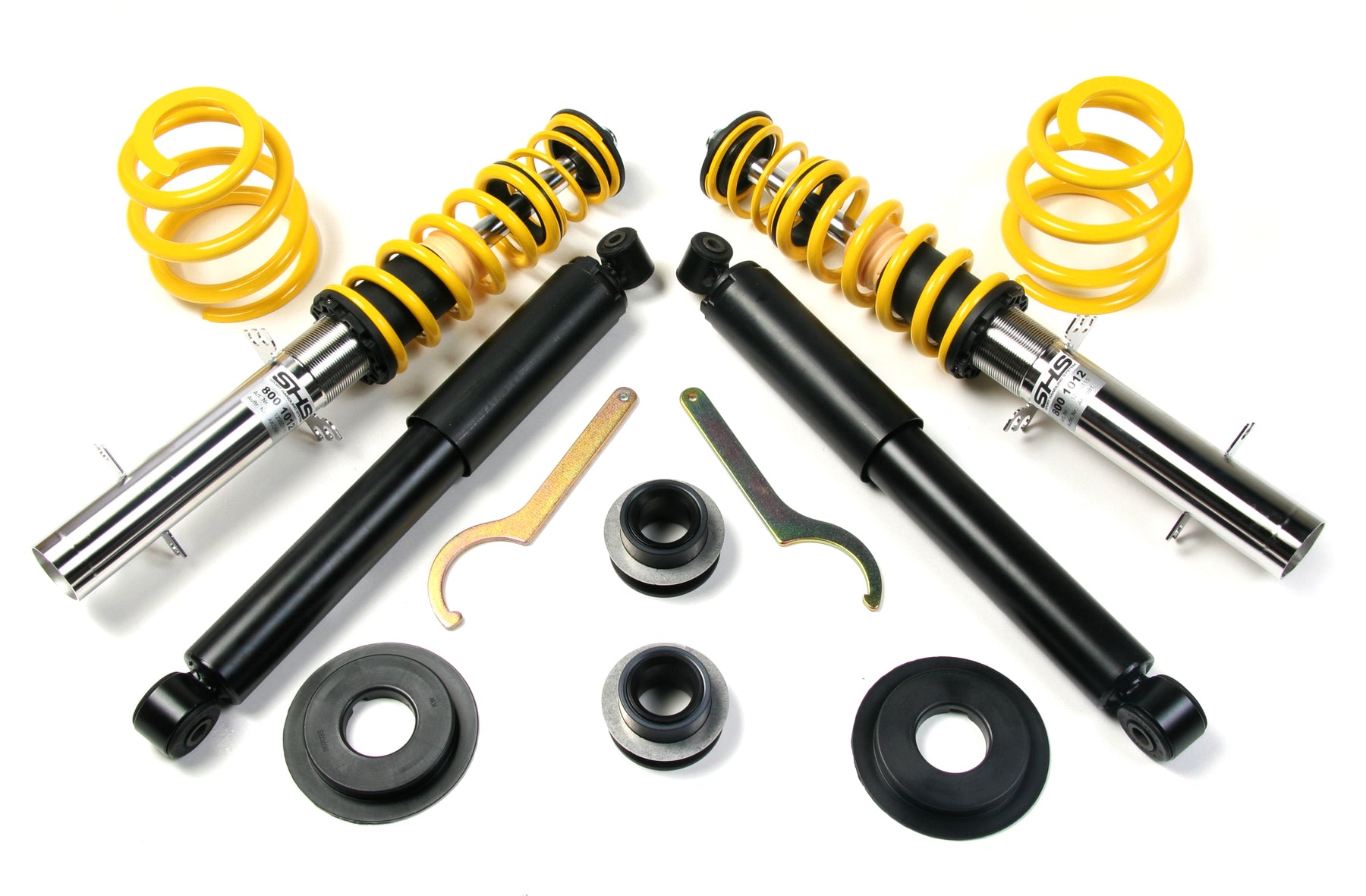

- Spanner Wrench included for adjusting ride height
- 2 Year Manufacturers Warranty through KW Automotive
APPLICATION - FRONT RANGE / REAR RANGE

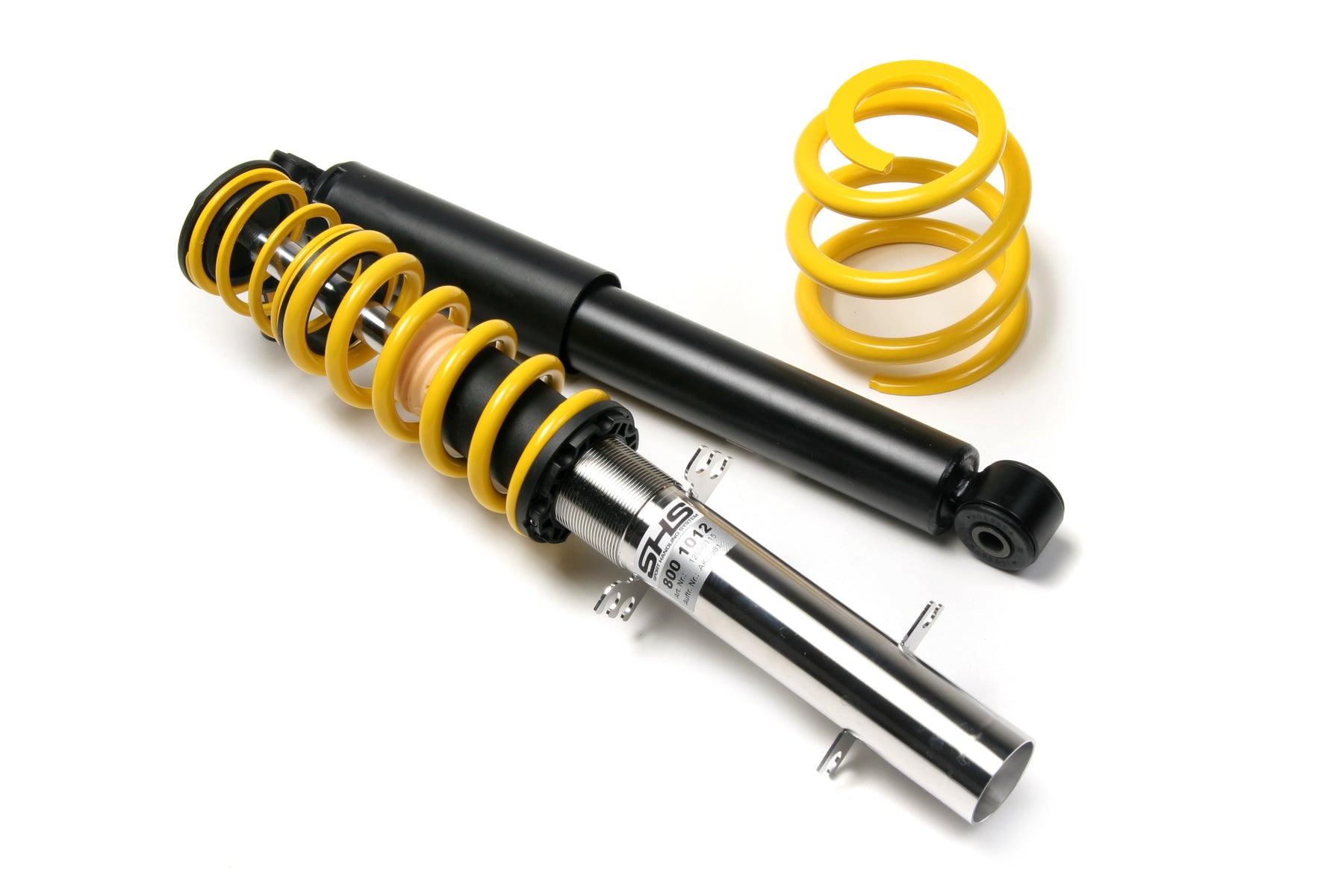

Part # HPA-210 - SHS Coilovers
- VW Scirocco (Mk6) - 10-45mm / 10-45mm
HPA branded products carry a one year warranty against manufacturer's defects on all major, non-consumable, components. Damaged caused by incorrect installation, wear and tear, abuse, misuse, racing, collision, foreign particles, etc., will NOT be covered by warranty.
Warranty is offered to original purchaser only and is not transferable.
HPA Motorsports will not be liable for incidental, consequential, indirect, special, or punitive damages of any kind. HPA’s entire liability shall be limited to replacement or repair of the damaged parts at HPA’s option.
Labour and freight costs associated with warranty repair or replacement are NOT covered.
To maintain validity of warranty, factory recommended maintenance schedule and manufacturer’s Technical Service Bulletins (TSB’s) must be adhered to and documented.
In addition to the above, the HPA FT/FTX series Turbo packages for VR6 motors have the following conditions:
Components covered by warranty include:
- Turbochargers
- Exhaust Manifold
- Downpipe
- Catalysts
- Exhaust System
- Intake Manifold
- Silicone Plumbing
- Intercoolers
- Fuel Pump
- Fuel Injectors
- Brake Calipers
- Haldex Controller
Components NOT covered by warranty include:
- Clutch
- Gearbox
- Brake Pads & Brake Rotors
Any claims of defect in workmanship must be repaired at HPA Motorsports' facility located in Langley, Canada. Should the damage be determined to be a direct result of the workmanship of HPA Motorsports, labor costs for HPA Motorsports to complete repairs at our own facility will be included in the warranty repair. In certain circumstances, at the sole discretion of HPA Motorsports, permission may be granted for repairs to be completed at an HPA authorized facility at a pre-approved labor rate.
HPA Motorsports will not be liable for incidental, consequential, indirect, special, or punitive damages of any kind. HPA’s entire liability shall be limited to replacement or repair of the damaged parts at HPA’s option.
To maintain validity of warranty, in addition to the factory recommended maintenance schedule, the following services must be adhered to and documented according to the prescribed schedule:
Break In period: engine speed is not to exceed 5500 RPM, and absolutely NO standing starts are to be performed | 1000 km / 620 miles |
Mass Air Flow meter – Clean | 5000 km / 3100 miles |
Mass Air Flow meter – Replace | 20,000 km / 12,500 miles |
Engine Oil (Motul Xcess / 8100 5w40) & Filter – Replace | 5000 km / 3100 miles |
Haldex Fluid & Filter – Replace | 10,000 km / 6000 miles |
Any claims of defect in workmanship must be repaired at HPA Motorsports' facility located in Langley, BC Canada. Should the damage be determined to be a direct result of the workmanship of HPA Motorsports, labor costs for HPA Motorsports to complete repairs at our own facility will be included in the warranty repair.
For remote customers, in certain circumstances, at the sole discretion of HPA Motorsports, permission may be granted for repairs to be completed at an HPA authorized facility at a pre-approved labor rate.
Should you experience any issues with your items, please contact HPA Motorsports for technical assistance using the form below or by calling 604-888-7274 prior to engaging in any repair procedure. Failure to follow the advice of our technical support staff may cause undue harm that will not be covered by warranty.
